Birtley  |  SKU: BIRMD110/750

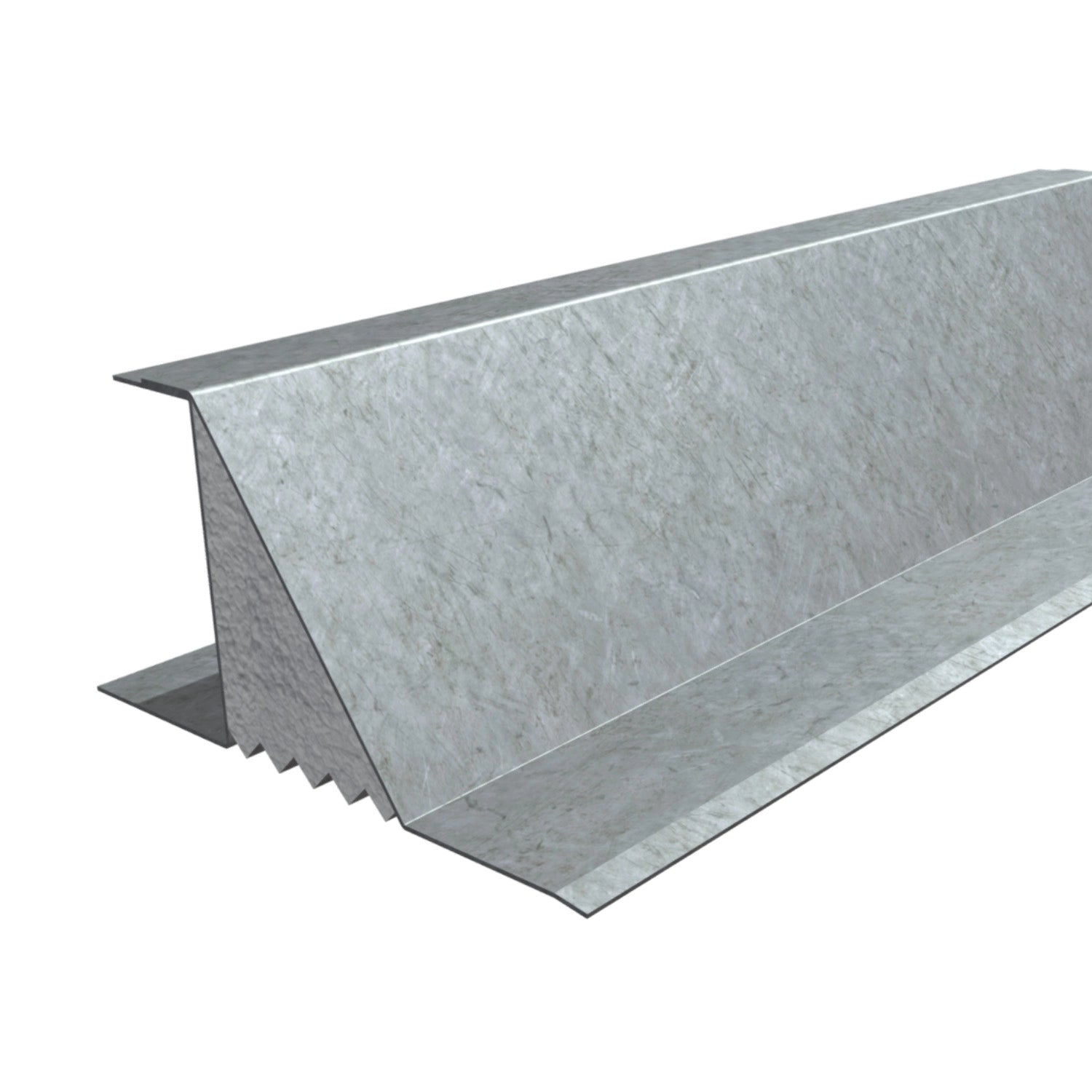

Birtley Medium Duty Cavity Wall Eaves With Attic Truss MD110 750mm - 3900mm

Nationwide Delivery in 3-5 WORKING DAYS

  • Delivery: £50 ex VAT
  • FREE DELIVERY OVER £500

Need a next-day or named day delivery? Call Us.

Length
£69.53 Ex VAT
£83.44 Inc VAT
Shipping calculated at checkout.

The Birtley Medium Duty Cavity Wall Eaves Lintel MD110 is specifically designed to provide structural support in cavity wall constructions that incorporate attic trusses. Ranging from 750mm to 3900mm in length, this lintel is made from hot-dip galvanised steel, ensuring excellent resistance to corrosion and longevity in all types of environments. Its medium-duty construction makes it suitable for residential and commercial projects, offering reliable support at the eaves level while carrying medium loads.



  • Superior life expectancy due to the Supergalv coating.
  • Galvanised post-fabrication for superior paint protection.
  • Structural grade steel to EN10025.
  • Fire rated to 60 minutes (with 2 coat plaster finish).
  • Plaster key to inner leaf.



External Wall Lintel Load:

Length (mm)

750-

1800

1950-

2400

2250-

3000

3150-

3900

Load SWL/UDL value (kN)

35

35

35

25

Weight

(kg/m)

10.1

12.9

13.9

13.9

Height (mm)

154

155

156

156



Requirements for Installation:

This lintel must be bedded fully on bricklaying mortar and used with a cavity tray. This lintel is not suitable for point loads or concrete floors. The minimum end bearing for this lintel is 150mm.

Trustpilot
  • Size
    110mm-125mm
  • Thickness
    154mm / 155mm / 156mm
  • Length
    750mm, 900mm, 1050mm, 1200mm, 1350mm, 1500mm, 1650mm, 1800mm, 1950mm, 2100mm, 2250mm, 2400mm, 2550mm, 2700mm
  • Width
    300mm
  • Material
    Galvanised Steel
