Simpson  |  SKU: TP-670071

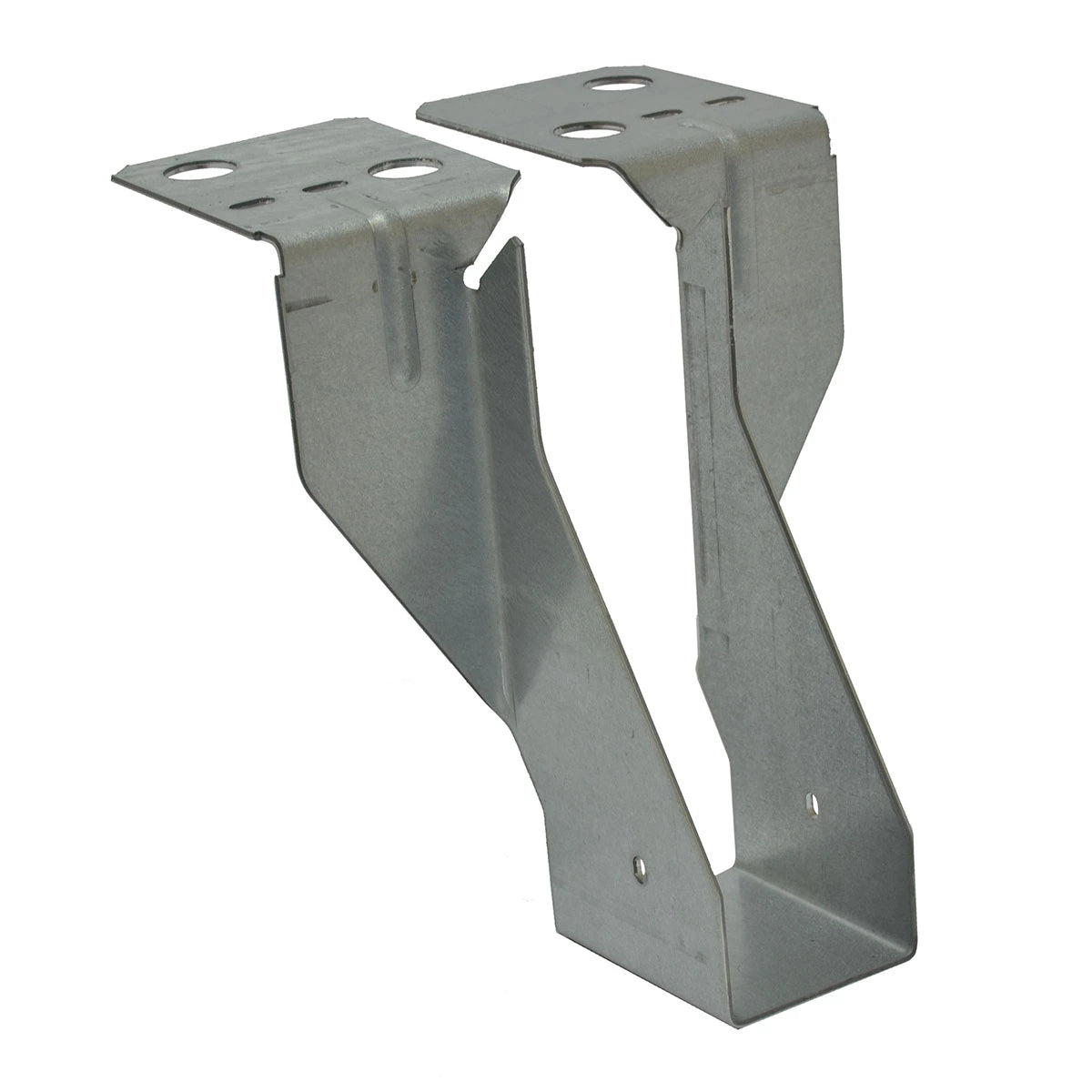

150mm x 47mm Simpson Strong-Tie Masonry Supported Joist Hanger JHM150/47

Nationwide Delivery in 3-5 WORKING DAYS

  • Delivery: £25 ex VAT
  • FREE DELIVERY OVER £500

Need a next-day or named day delivery? Call Us.

£1.96 Ex VAT
£2.35 Inc VAT
Shipping calculated at checkout.

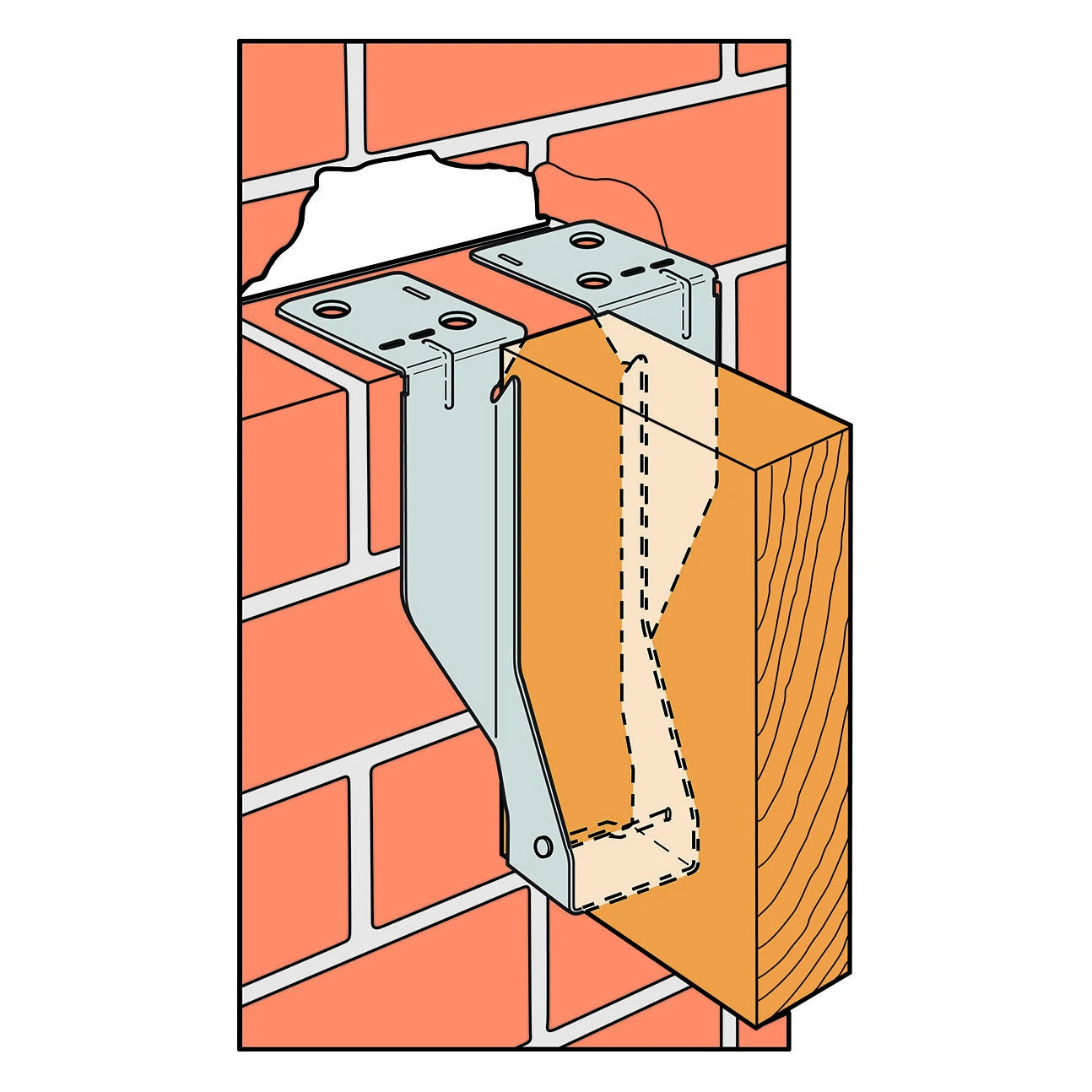

These joist hangers made from pre-galvanised mill steel are designed for use connecting structural timber joists to brick and block masonry walls.  For joists 47x150mm in size. They are designed to be installed between courses of bricks during construction to provide a sturdy and secure fastening for structural joists.

  • Built in inspection slot at the base for inspection from below
  • Designed to resist joist movement
  • 2mm thick
  • Can be mechanically fixed to steel beams
  • Suitable for retrofitting

What are Masonry Supported Joist Hangers?

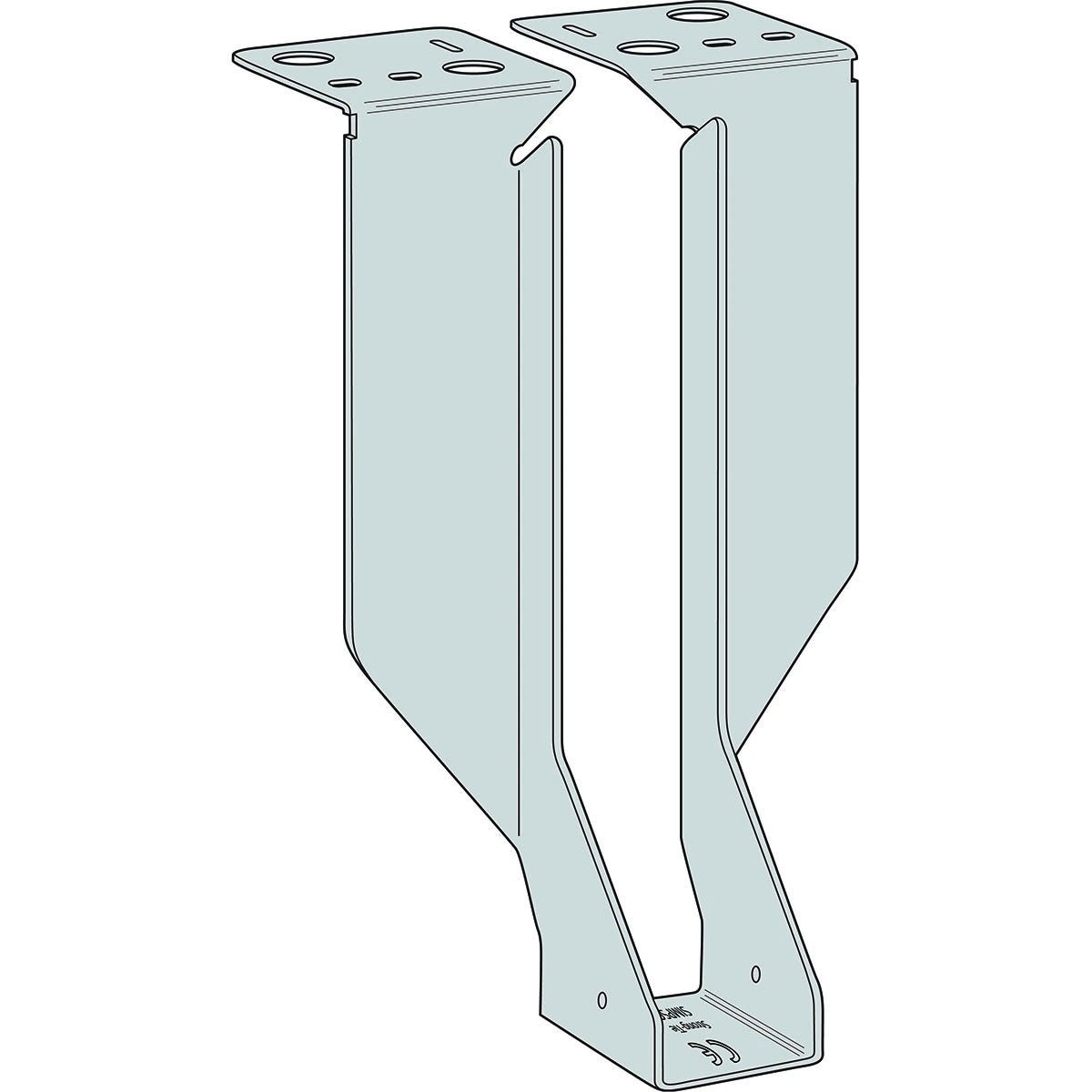

A masonry-supported joist hanger is a structural component used in construction to attach wooden joists securely to masonry walls or structures. Typically made of galvanised steel or other sturdy materials, these hangers feature flanges or brackets that are anchored into the masonry using specialised fasteners like expansion bolts or concrete screws. They provide a reliable connection between the wooden joist and the masonry, ensuring proper load transfer and structural stability. Masonry-supported joist hangers are commonly used in building projects where wooden floor or roof joists need to be attached to masonry walls or columns, providing a robust solution for supporting loads and distributing weight effectively.

Data Sheets & Guides:

Simpson Masonry Joist Hanger (JHM) Installation Guide & Data Sheets



    Trustpilot
    • Size
      47mm x 10mm
    • Thickness
      47mm
    • Width
      150mm
    • Material
      Galvanised Steel
