SuperFOIL  |  SKU: SF40BB-12

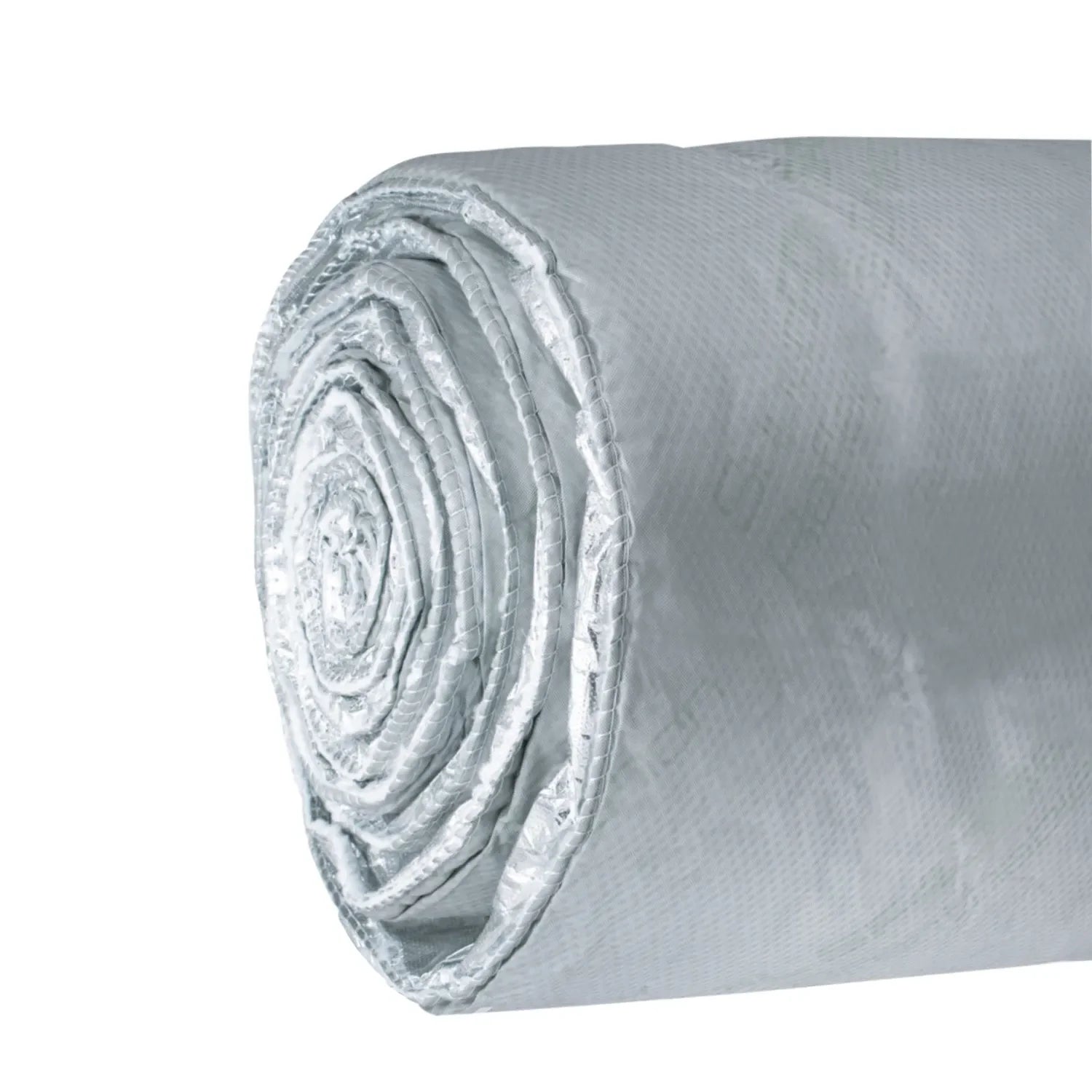

SuperFOIL SF40BB Breathable Multifoil Insulation - 1.5m x 10m - pack of 12 (180m²)

£2,761.65 Ex VAT
£3,313.98 Inc VAT
Pay securely with Visa Maestro Mastercard Amex Klarna Paypal

Nationwide Delivery in 3-5 WORKING DAYS

Delivery: £50 ex VAT
FREE DELIVERY OVER £500

Need a next-day or named day delivery? Call Us.

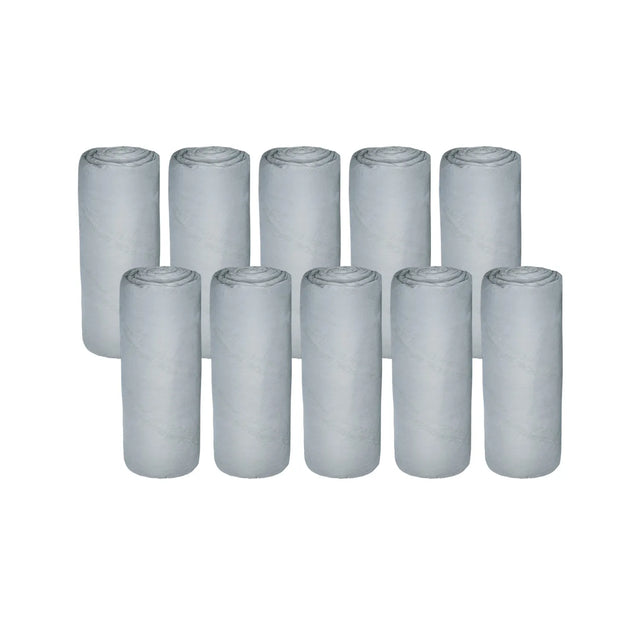

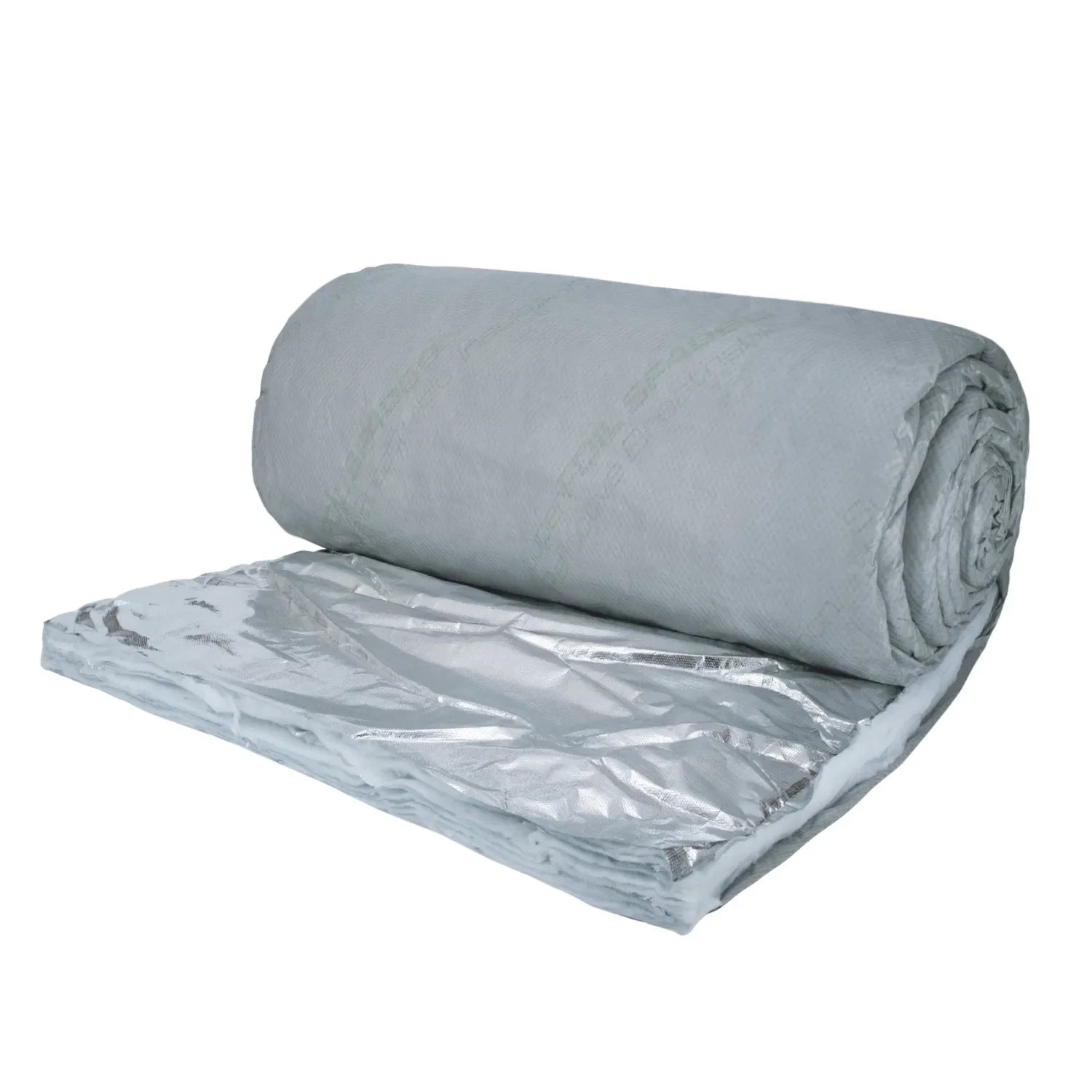

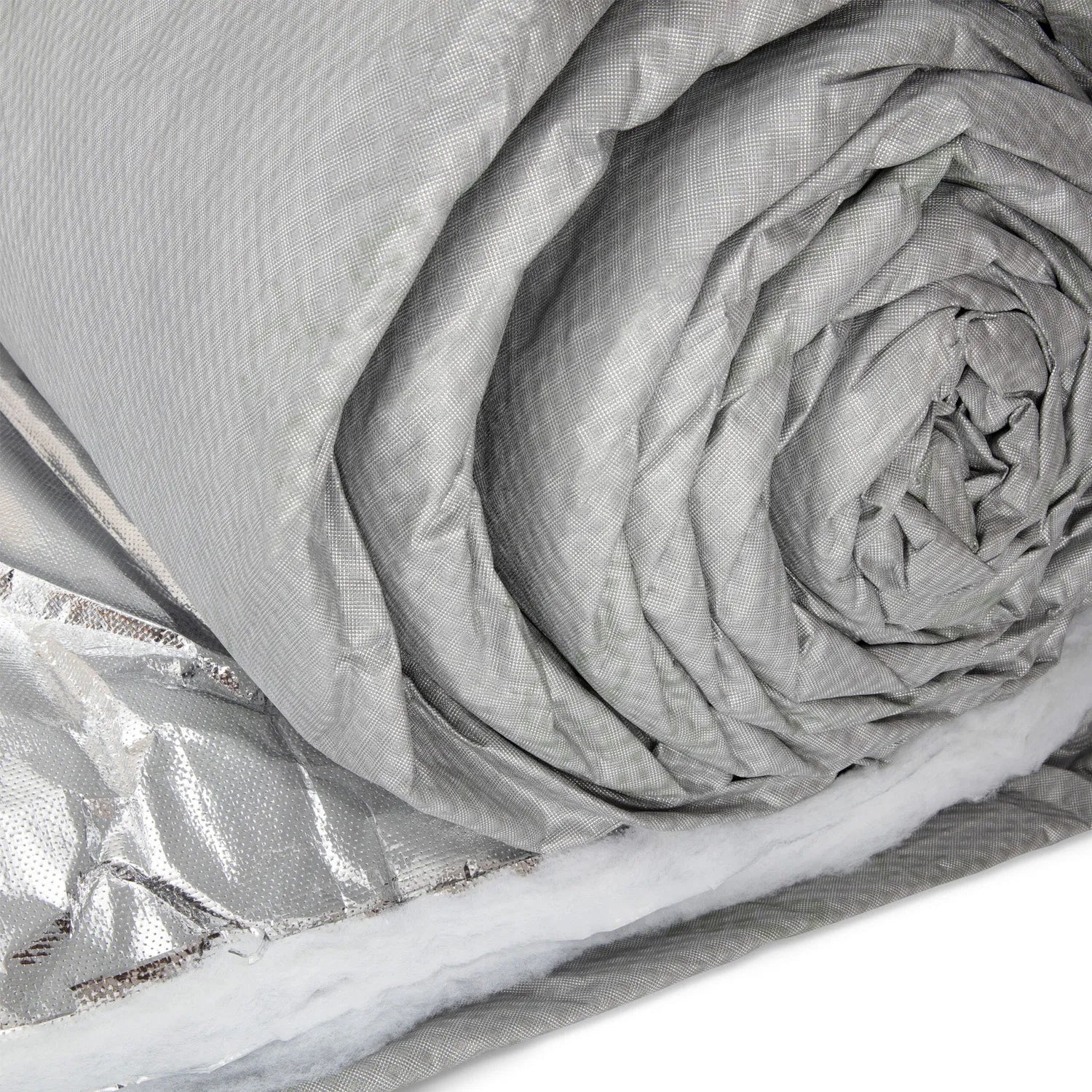

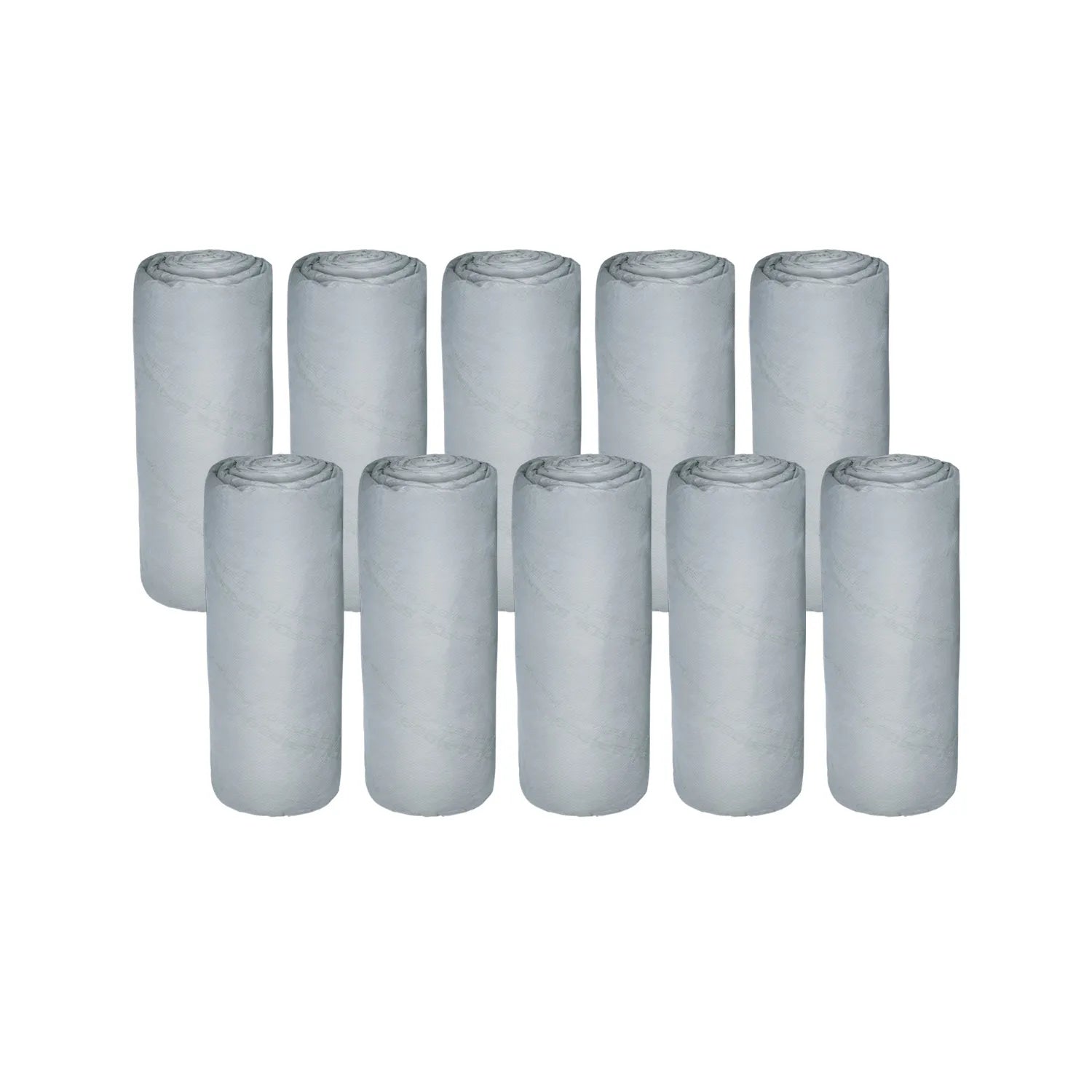

A pack of 12 rolls of SuperFOIL SF40BB - ideal for retrofits, extensions and conversions. SuperFOIL SF40BB is an even higher performance multi-foil insulation and breather membrane than our SuperFOIL SF19BB, composed of layers of perforated Aluminium Coated Reflective Foil PET, thin Loft Quilt, reflective foil and reflective-coated breather membrane to create a highly effective insulation for use in Roofing, walls and flooring. A 3-in-1 design, SF40BB Breathable Multifoil insulation functions as foil insulation, a breather membrane and a radiant barrier. SuperFOIL SF40BB is made from up to 40% recycled materials and is fully recyclable at the end of its 50+ year lifespan.

  • Achieves an R Value of 3.67 in Roofs and 3.98 in walls
  • No need for additional Breather Membrane
  • Ideal for New Builds, Extensions and retrofits
  • Simple installation with basic tools and supplies
  • Space-saving size with effective insulating properties

What is Multi foil insulation?

Multi-foil insulation is a type of thermal insulation material composed of several layers of reflective foil, often with additional materials such as foam or bubble wrap sandwiched in between. The reflective foil layers work by reflecting radiant heat, preventing it from entering or escaping a building, thus helping to maintain desired temperatures and improve energy efficiency. This type of insulation is popular for its lightweight and flexible nature, making it easy to install in various construction applications, such as roofs, walls, and floors. Multi-foil insulation is known for its high thermal performance and is often chosen for its effectiveness in reducing heat loss or gain in buildings.

What is a Breather Membrane?

A breather membrane, also known as a vapour-permeable membrane, is a type of building material used in construction primarily for its ability to allow moisture vapour to pass through while preventing liquid water from penetrating into the structure. It is typically installed on the external side of a building's insulation, beneath the external cladding or roofing materials. Breather membranes help to manage moisture within the building envelope, reducing the risk of condensation and mould growth while improving energy efficiency by allowing buildings to "breathe" and maintain a balanced internal environment.

What is a Radiant Barrier?

A radiant barrier is a type of material designed to reduce radiant heat transfer. Radiant barriers work by reflecting radiant heat away from the surface they cover, which helps to keep spaces cooler in the summer and warmer in the winter. They are often installed in attics, under roofs, or in walls where they can block the transfer of radiant heat from the sun or from indoor heating systems. By minimising radiant heat transfer, radiant barriers can help improve energy efficiency and increase comfort levels within buildings.

How to install SuperFOIL SF40BB?

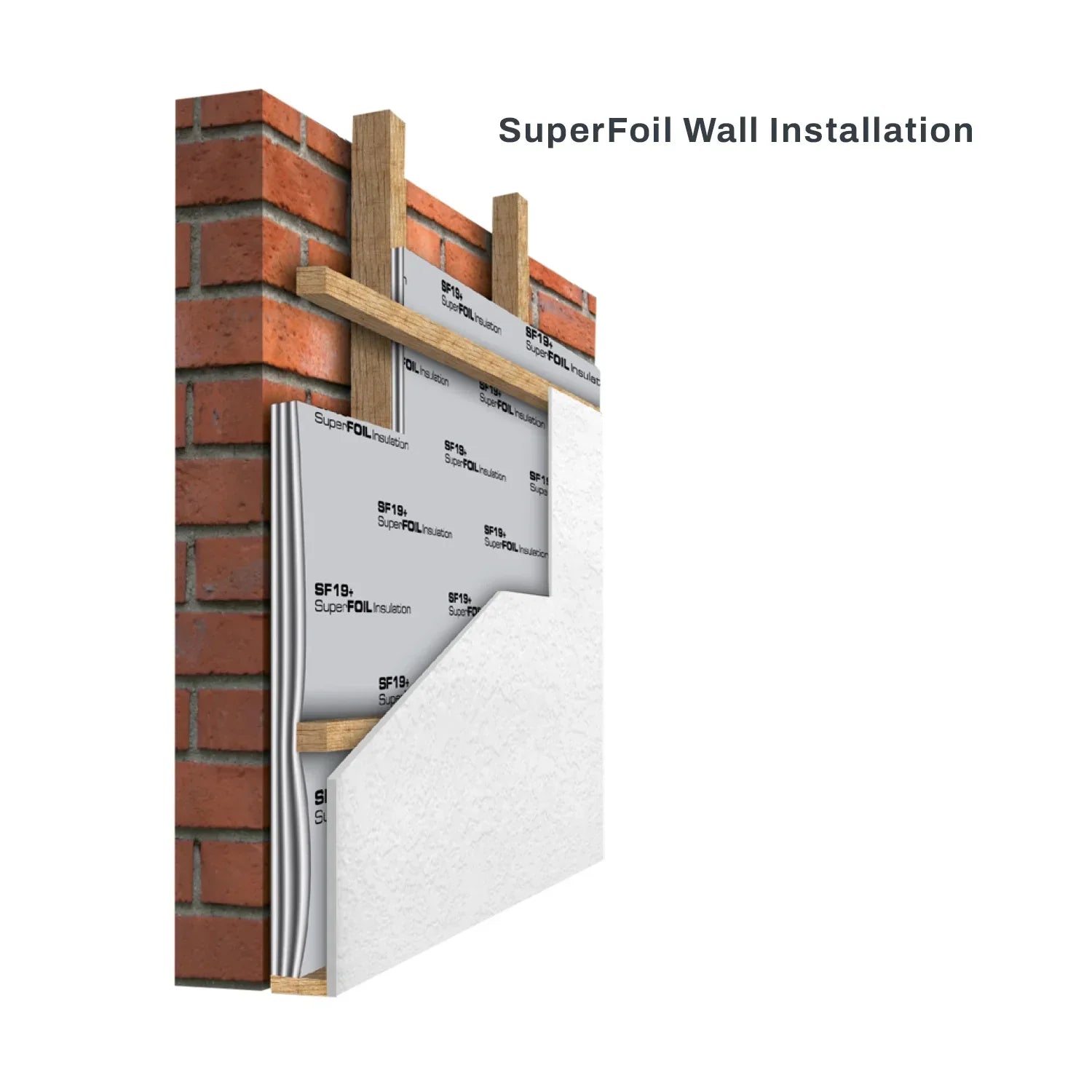

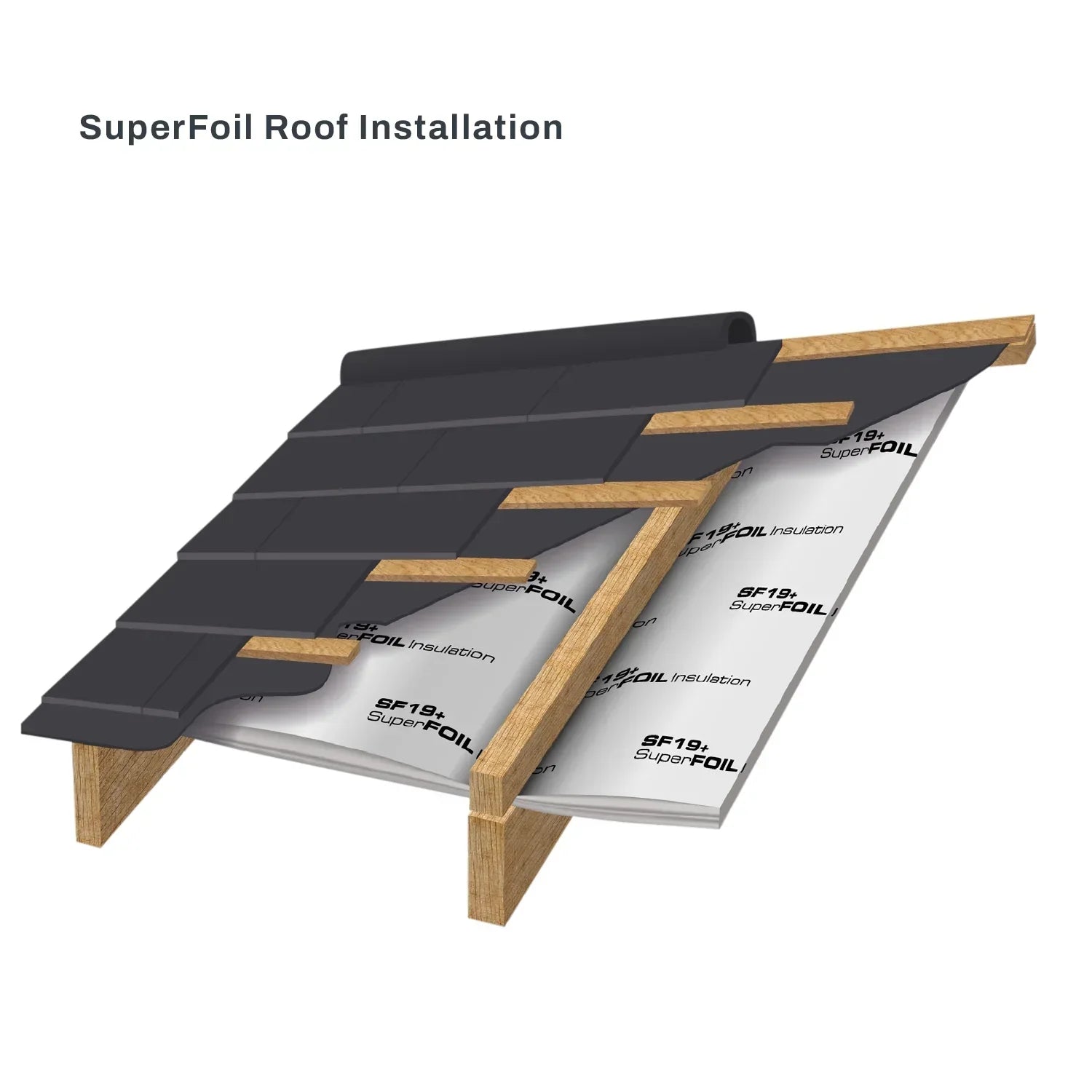

To install in roofs, simply cut to size, install over pitched roof timber rafters, from the eaves to the ridge, fix in place with a staple gun, and seal with Butyl tape. To install on solid walls, first battens must be added to the walls, and the multi foil installed on top. Then horizontal battens should be added on top, before finishing with plasterboard / ply etc.

Data Sheets & Guides:

SuperFoil Under Rafter Installation Guide

SuperFoil Over Rafter Installation Guide

Super Foil External Wall Installation Guide

SuperFoil SF40BB Data Sheet

Build Rewards with Every Purchase!

Earn Points, Redeem Vouchers

Sign Up Now for 150 Free Points
  • Size
    1500mm x 10m
  • Coverage (m²)
    180
  • Thickness
    75mm
  • Length
    10m
  • Width
    1500mm
  • Material
    Layered Foil & Loft Quilt
  • Estimated Lifespan
    50+ Years
  • Thermal Resistance
    Core R Value: 2.92
  • Water Resistance
    0.115MNs/g
  • Reaction to Fire
    Euroclass E

Large Order or Specific Requirement?

CALL OUR TEAM

0115 6976 800

What is a Breather Membrane?

A Breather Membrane is a semi-permeable layer that is designed to allow water vapour to escape from within a building while preventing liquid water from entering. They are installed on the “cold” side of a wall or roof structure (the “outward face” to ensure that the structure remains dry and free from condensation, which can lead to structural damage and poor insulation performance. Particularly in wall structures, they are often used in conjunction with a Vapour Control Layer which is typically used on the interior "warm" side of a wall structure.

Multi Foil Insulated Breather Membrane

Many of our breather membranes are a multi-purpose product that are made of reflective multi foil insulation such as SuperFOIL, which is essentially a multi layer foil insulation that has a breathable surface to function as both a breather membrane and a thin but effective layer of insulation.

Novia Breather Membranes

Novia are a specialised manufacturer of Breather Membranes designed for a wide range of uses and purposes. Most of their breather membranes are designed for use within a wall structure, though they also offer membranes specifically sized for use in roofing. When choosing a Breather Membrane, it is important that they are chosen in accordance with building regulations specifications. These specifications are in place to account for:

  • An Increase in adverse weather conditions
  • Variance in weather conditions across the country
  • Variance in styles of roofing and wall structures and their breathability

Typically in areas with higher wind resistance, the appropriate Breather Membrane is likely to have a higher tensile strength, to ensure that sagging, tearing or ballooning doesn’t occur after installation. If the structure is likely to be exposed to the elements for some time before exterior facings or roofing is applied, a membrane with higher UV resistance is important to prevent degradation under the elements. Similarly, if a roofing space is unventilated, it may be advised to choose a membrane with a higher vapour permeability to ensure excess condensation does not accumulate.
