Easy-Trim  |  SKU: 949505

Easy-Trim Grafter Roofing Breather Membrane - 1m x 50m (50m²)


£49.06 Ex VAT
£58.87 Inc VAT
Pay securely with Visa Maestro Mastercard Amex Klarna Paypal

Nationwide Delivery in 3-5 WORKING DAYS

Delivery: £25 ex VAT
FREE DELIVERY

Need a next-day or named day delivery? Call Us.

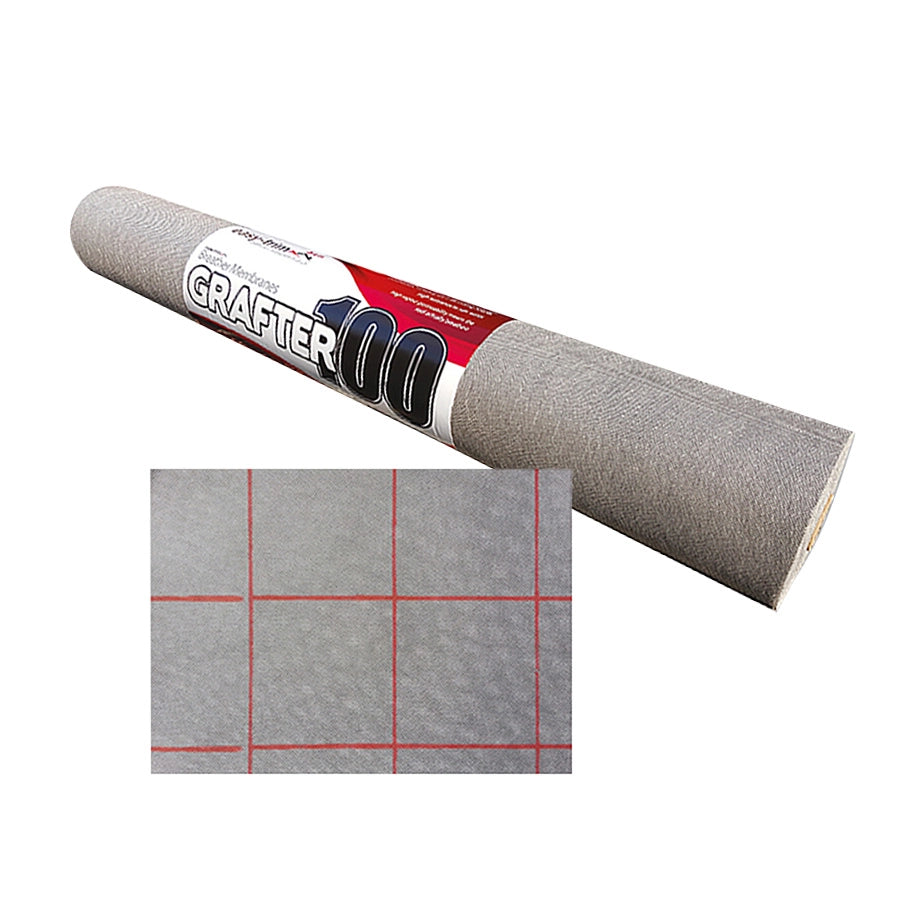

The Easy-Trim “Grafter” Roofing Breather Membrane is an entry-level breather membrane for use in warm and cold roofs. Install across roofing rafters with printed side facing out, before the installation of roofing battens. Seal overlap with Breather Membrane Tape. Suitable for warm, cold and hybrid roof applications and sarking boards.

  • Supplied in rolls
  • BBA certified for warm and cold roof applications
  • Conforms to BS5534.
  • UV stable for 3 months
  • Vapour Permeable


Length:

50m Roll

Thickness:

100gsm

Width:

1m

Coverage:

50m2

Resistance to Water Penetration:

W1 Class

Reaction to Fire:

E Class

Low Temperature Stability (no cracking at):

-40°C



Data Sheets & Information

  • Size
    1m x 50m
  • Coverage (m²)
    50
  • Thickness
    100gsm
  • Length
    50m
  • Width
    1m
  • Material
    Polypropylene
  • Water Resistance
    W1 Class
  • Reaction to Fire
    E Class
Need Help? Call our Team on 0115 6976 800
What is a Breather Membrane?

A breather membrane, also known as a vapour-permeable membrane, is a type of building material used in construction primarily for its ability to allow moisture vapour to pass through while preventing liquid water from penetrating into the structure. It is typically installed on the external side of a building's insulation, beneath the external cladding or roofing materials. Breather membranes help to manage moisture within the building envelope, reducing the risk of condensation and mould growth while improving energy efficiency by allowing buildings to "breathe" and maintain a balanced internal environment.

How do I Apply a Breather Membrane?

A breather membrane should be applied on the exterior side of any wall or roofing structure - under the outer building lining, roof tiles or cladding. It should be fixed at intervals with suitable, permanent fixings and finished with Breather Membrane Tape for the most reliable and air-tight finish. It is best used in conjunction with a Vapour Control Layer applied to the interior of the structure.

For more information on use and specification, please download the data sheet for this product below.
