Recticel  |  SKU: IREWP115-8

115mm Recticel Eurowall Plus Full Fill Cavity Insulation Board - 8 Boards

£92.29 Ex VAT
£110.75 Inc VAT
Pay securely with Visa Maestro Mastercard Amex Klarna Paypal

Nationwide Delivery in 3-5 WORKING DAYS

Delivery: £50 ex VAT
FREE DELIVERY OVER £500

Need a next-day or named day delivery? Call Us.

Thickness: 115mm
90mm
115mm
140mm

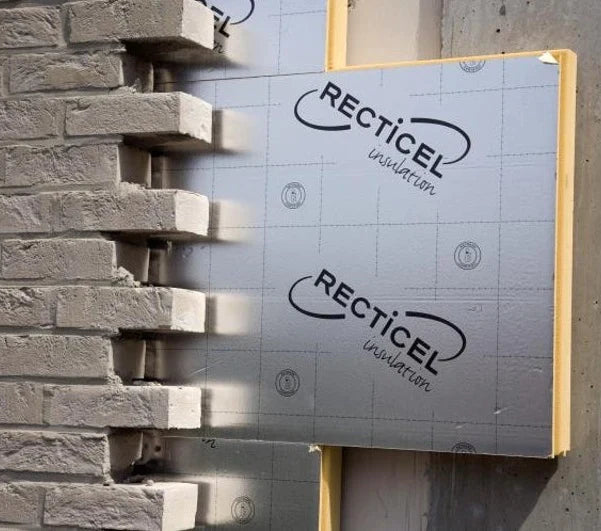

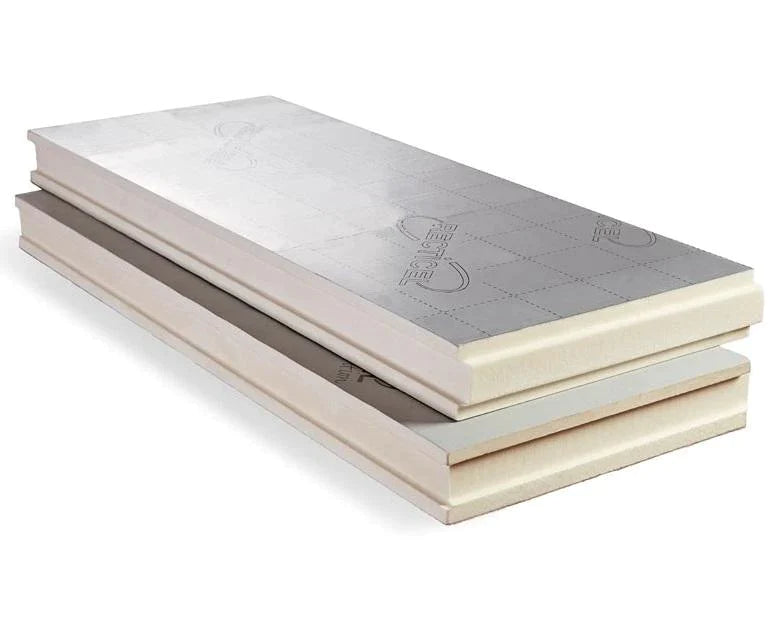

115mm Recticel Eurowall® + is a premium, high performance full fill insulation board with precision cut tongue and groove joints on all four sides. This ensures that the boards lock tightly together minimising heat loss through thermal bridging. This unique joint offers increased protection against wind driven rain as well as improved wind tightness. Eurowall® + is also designed with a 10mm cavity requirement in mind, so that space can be left for conventional bricklaying techniques.

115mm EUROWALL + within a 100mm cavity can help achieve a U-value of 0.18 W/m²K, meeting the requirements of Part L1A England 2013 and Part L1A Wales 2014. This means that existing designs can be maintained avoiding increased building footprints or reduced room sizes.

  • Good thermal performance: λ = 0.022 W/mK
  • Tongue and groove joints on all 4 sides - easy and fast installation
  • Can help to achieve 0.18 U-value in 100mm cavities

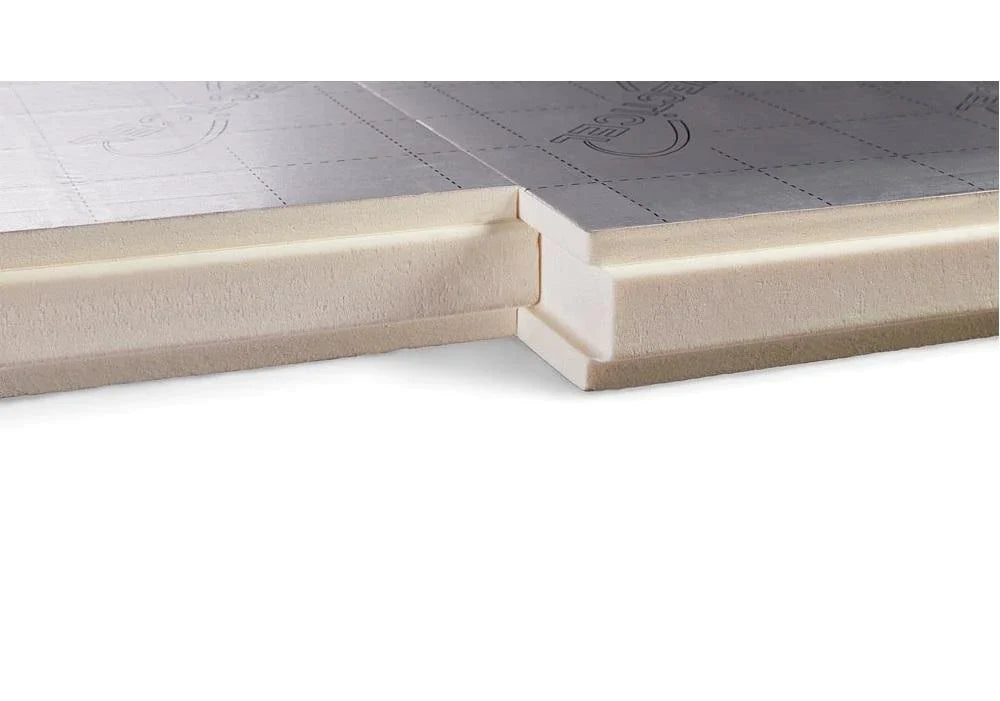

  • Tongue and groove rebate minimises thermal bridging
  • Fire performance: Class 1 (BS 476, Part 7)
  • Moisture tolerant
  • 1200mm x 460mm max including tongue and groove joint
  • 1190mm x 450mm installed dimensions
Thickness: 115 mm
Length: 1200 mm
Width: 460 mm
No. Boards: 8
Coverage: 4.4 m²
R-value *: 5.20 m²K/W
Thermal conductivity: 0.022 W/mK
Certification: BBA Certified (BBA certification 02/3908)



* The R-value denotes the resistance to heat flow – the higher the R-value the more insulating the product is.

    Build Rewards with Every Purchase!

    Earn Points, Redeem Vouchers

    Sign Up Now for 150 Free Points
    • Size
      1200mm x 460mm
    • Coverage (m²)
      4.416
    • Thickness
      115mm
    • Material
      PIR

    Large Order or Specific Requirement?

    CALL OUR TEAM

    0115 6976 800

    What is PIR Insulation Board?

    Polyisocyanurate (PIR) insulation is a type of rigid foam insulation board backed with a foil layer, that is renowned for its exceptional thermal performance. It is a strong and light type of foam that keeps structures warm by trapping air inside. PIR insulation board is lightweight, durable, and offers excellent fire resistance and thermal insulating properties, making it a super DIY-friendly solution that can easily be cut to size to fit rafters to be used in roof insulation, between joists as loft insulation, within stud walls and used as Cavity Wall Insulation.

    What Sizes Do Recticel Eurothane PIR Insulation Boards Come in?

    Our Recticel insulation boards all measure a standard size of - 2400mm x 1200mm, and are available in a variety of thicknesses to suit every size of floor, cavity or project such as:

    25mm, 30mm, 40mm, 50mm, 60mm, 70mm, 75mm, 80mm, 90mm, 100mm, 120mm and 150mm.

    The most popular sizes are 100mm Recticel, 50mm Recticel and 25mm Recticel.

    Recticel Eurothane Insulation Boards - How to Install

    There are many different uses for PIR insulation board, so the method to install your Recticel insulation may vary. However, generally Recticel is intended to fit the depth of the cavity, such as when installing between joists as loft insulation, or Cut to fit the height and width required using a utility knife, or handsaw for thicker boards, to achieve a friction-fit  - meaning the boards should fit tightly and stay easily in place with no additional fixtures and fittings.

    For precise installation instructions for your specific use case, it is recommended to consult your builder, architect or building inspector to ensure installation complies with building regulations.

    Recticel PIR Insulation Fire Rating

    Recticel PIR insulation boards are rated Euroclass F Reaction to Fire classification, according to BS EN 13501-1

    Recticel PIR Insulation R-value

    The R-Value of Recticel PIR Boards increases with the thickness of the board. The higher the R-Value, the greater the resistance of the board and therefore the more effective the thermal insulation.

    Recticel PIR boards have a thermal conductivity of 0.022 W/m.K.

    R-Value (m².K/W)

    • 25mm  - 1.10
    • 30mm - 1.35
    • 40mm - 1.80
    • 50mm - 2.25
    • 60mm - 2.70
    • 70mm - 3.15
    • 75mm - 3.40
    • 80mm - 3.60
    • 90mm - 4.05
    • 100mm - 4.50
    • 120mm - 5.45
    • 150mm - 6.80

    To calculate the U Value of your wall, you must consider the entire structure of the wall, including air gaps. A general formula for calculating the U-value:

    U = 1 over R

    Where:

    U = U Value

    R = The total thermal resistance of the building component, including all layers of materials and air gaps.

    Recticel PIR Insulation Thermal Conductivity

    Recticel PIR boards have a thermal conductivity of 0.022 W/m.K.

    Recticel PIR Insulation Moisture Resistance

    Recticel boards are made of a closed-cell structure which means they do not specifically retain moisture, although they are not entirely waterproof.
