Novia  |  SKU: NV016

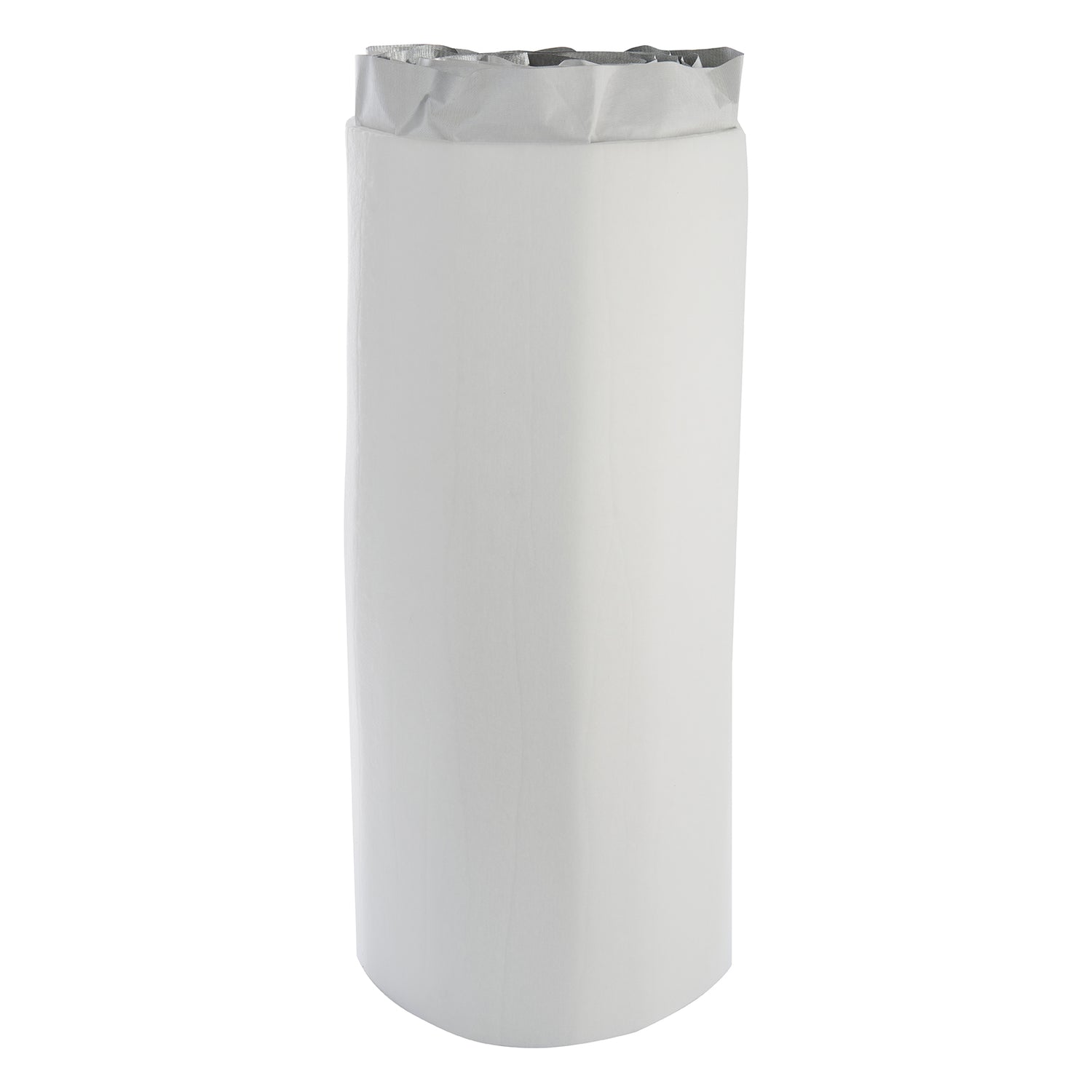

RoofReflex Insulated Breather Membrane 1.4m x 10m 14m2

£131.67 Ex VAT
£158.00 Inc VAT
Pay securely with Visa Maestro Mastercard Amex Klarna Paypal

Nationwide Delivery in 3-5 WORKING DAYS

Delivery: £40 ex VAT

Need a next-day or named day delivery? Call Us.

For use in a wide range of building applications, RoofReflex is an insulated, breathable roof and wall underlay that is airtight and vapour permeable. RoofReflex is designed with an insulation layer laminated to a high emissivity surface, to help improve u-values. Install on the “Cold” (exterior) side of a structural frame or directly over insulation or rafters and pair with a vapour barrier on the “Warm” (internal) side - seal with Novia tapes for best results.

  • Supplied in rolls
  • Water resistant to EN 1928 W1
  • Reduces thermal bridge losses
  • 1.5m wide
  • Meets EN 13859-1 for pitched roofing and EN 13859-2 for walls
  • 1 month UV Resistance
  • 10 Year Warranty

    Length:  10m Roll
    Thickness: 730gsm
    Width:  1.4m
    Coverage: 14m2
    Resistance to Water Penetration: W1 Class
    Reaction to Fire: E Class



    What is a Breather Membrane?

    Breather Membranes are designed to allow wall and roof structures to release excess moisture vapour into the atmosphere - to “breathe” - without allowing wind-driven rain and dust to penetrate wall or roof structures. They must be installed on the exterior (“cold”) side of any structure - beneath the main outer building lining, roof tiles or cladding.

    It is advised to seal your Breather Membrane with corresponding Lap Tapes for a quality, breathable seal.

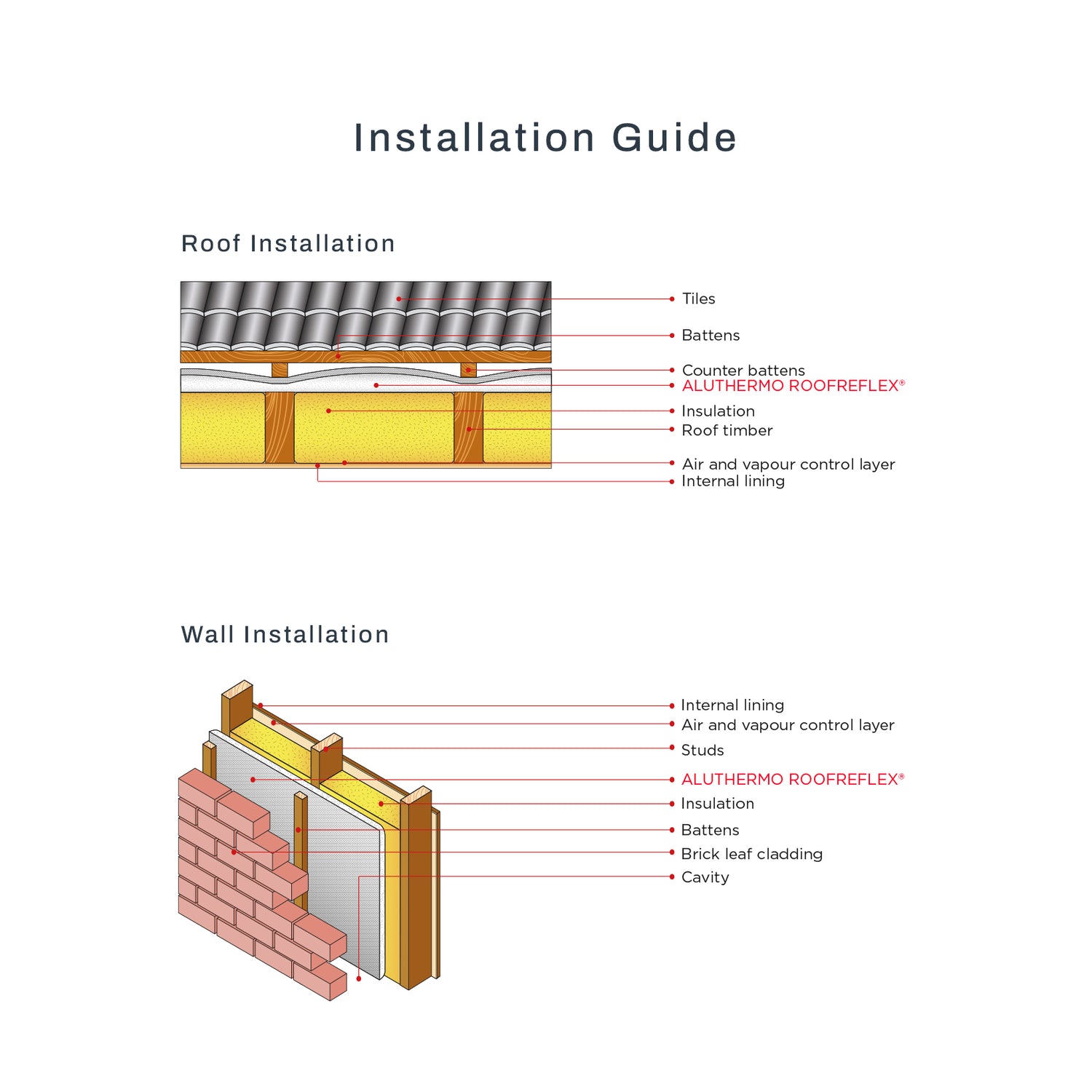

    How do I Apply a Breather Membrane?

    A breather membrane should be applied on the exterior side of any wall or roofing structure - under the outer building lining, roof tiles or cladding. It should be fixed at intervals with suitable, permanent fixings and finished with Breather Membrane Lap Tape for the most reliable and air-tight finish. It is best used in conjunction with a Vapour Control Layer applied to the interior of the structure.

    For more information on use and specification, please download the data sheet for this product below.

    Data Sheets & Information

    Build Rewards with Every Purchase!

    Earn Points, Redeem Vouchers

    Sign Up Now for 150 Free Points
    • Size
      1.4m x 10m
    • Coverage (m²)
      14
    • Thickness
      730gsm
    • Length
      10m
    • Width
      1.4m

    Large Order or Specific Requirement?

    CALL OUR TEAM

    0115 6976 800

    Frequently Asked Questions

    What is a Breather Membrane?

    A Breather Membrane is a semi-permeable layer that is designed to allow water vapour to escape from within a building while preventing liquid water from entering. They are installed on the “cold” side of a wall or roof structure (the “outward face” to ensure that the structure remains dry and free from condensation, which can lead to structural damage and poor insulation performance. Particularly in wall structures, they are often used in conjunction with a Vapour Control Layer which is typically used on the interior "warm" side of a wall structure.

    Multi Foil Insulated Breather Membrane

    Many of our breather membranes are a multi-purpose product that are made of reflective multi foil insulation such as SuperFOIL, which is essentially a multi layer foil insulation that has a breathable surface to function as both a breather membrane and a thin but effective layer of insulation.

    Novia Breather Membranes

    Novia are a specialised manufacturer of Breather Membranes designed for a wide range of uses and purposes. Most of their breather membranes are designed for use within a wall structure, though they also offer membranes specifically sized for use in roofing. When choosing a Breather Membrane, it is important that they are chosen in accordance with building regulations specifications. These specifications are in place to account for:

    • An Increase in adverse weather conditions
    • Variance in weather conditions across the country
    • Variance in styles of roofing and wall structures and their breathability

    Typically in areas with higher wind resistance, the appropriate Breather Membrane is likely to have a higher tensile strength, to ensure that sagging, tearing or ballooning doesn’t occur after installation. If the structure is likely to be exposed to the elements for some time before exterior facings or roofing is applied, a membrane with higher UV resistance is important to prevent degradation under the elements. Similarly, if a roofing space is unventilated, it may be advised to choose a membrane with a higher vapour permeability to ensure excess condensation does not accumulate.
