Tiling directly onto chipboard flooring presents significant technical challenges requiring careful assessment and appropriate preparation techniques. Understanding the specific issues and potential solutions helps achieve successful results without the premature failures common with inappropriate installation methods.
The fundamental challenge stems from chipboard's inherent dimensional instability compared to ceramic tiles. Chipboard undergoes natural expansion and contraction with moisture and humidity changes, typically moving 0.25-0.35% across its width with normal seasonal variations. This movement occurs gradually through annual cycles as heating systems operate and environmental conditions change. Ceramic tiles, conversely, remain dimensionally stable once installed, with virtually zero movement in response to the same environmental changes. This movement differential creates shear stresses at the interface between these materials, potentially leading to adhesive failure, cracked grout, or loose tiles when installed without appropriate accommodation measures. The risk becomes particularly acute with larger format tiles where even slight substrate movement translates to significant stress across extended tile dimensions. These physical property differences explain why direct tiling onto chipboard historically shows high failure rates despite initially appearing successful.

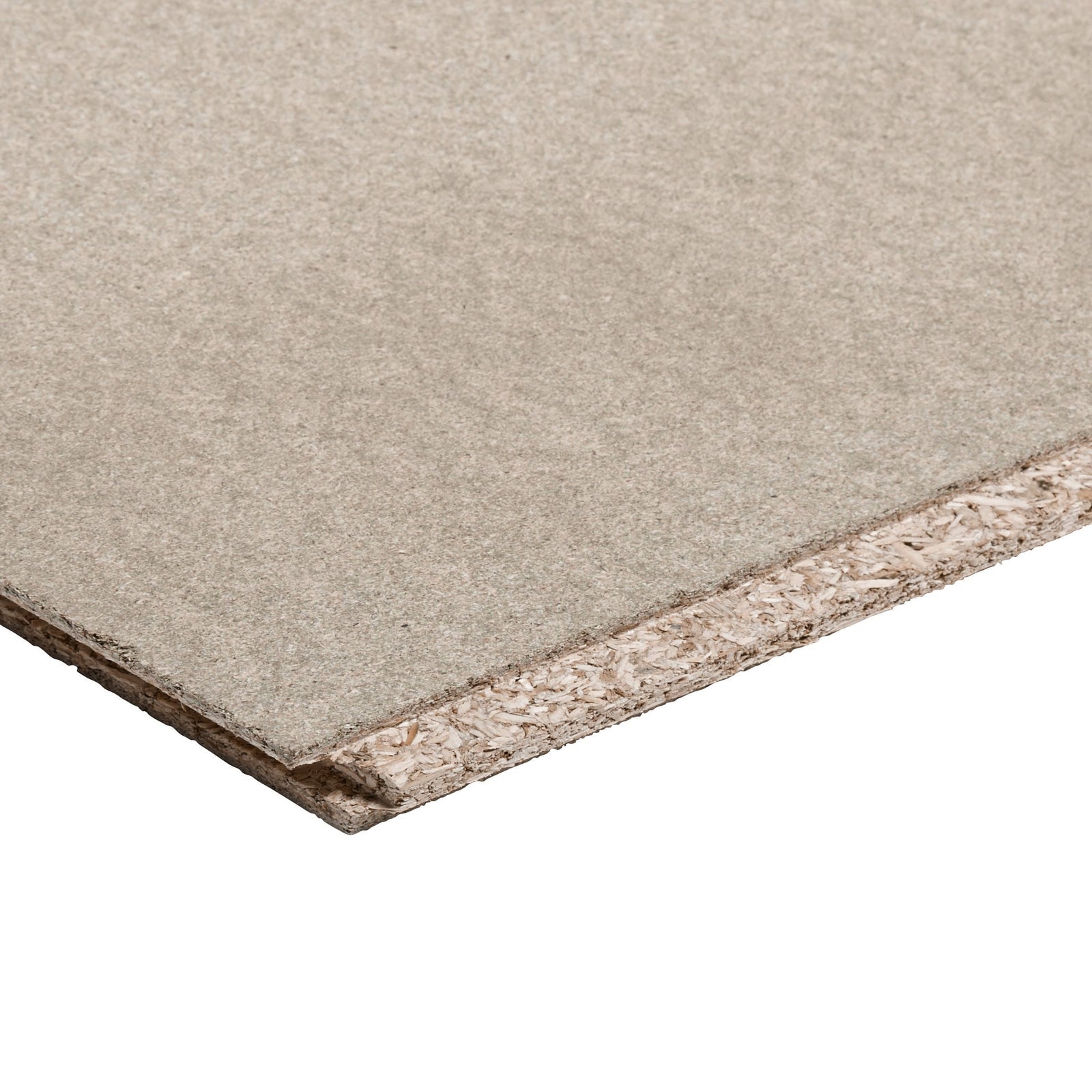

Standard flooring-grade chipboard (P5) presents specific characteristics making it problematic as a direct tiling substrate. Beyond its movement properties, the relatively smooth surface provides limited mechanical key for adhesive bonding, while the material's susceptibility to edge swelling with moisture exposure creates vulnerability at board joints. Water from cement-based adhesives can cause localised swelling during installation, potentially creating lippage between adjacent tiles before adhesive curing completes. The material's relatively low surface strength compared to dedicated tile substrates means heavy point loads can cause compression beneath tiles, eventually leading to cracked units or failed adhesion. These multiple challenging characteristics combine to make standard flooring chipboard generally unsuitable for direct tile application without substantial modification or overlayment.
Industry guidance from authoritative sources provides clear direction regarding appropriate practice. The Tile Association (TTA), the UK's primary authority on tiling standards, explicitly advises against direct tiling onto standard chipboard in their technical publications. Similarly, British Standard BS 5385 (Code of practice for tiling) recommends specific overlay boards rather than direct application. Leading tile adhesive manufacturers like BAL, Weber, and Mapei typically exclude standard chipboard from their recommended substrates list for direct tiling, with warranty provisions specifically excluding failures on such surfaces without appropriate preparation. This consistent industry position reflects extensive field experience showing poor long-term performance with direct application methods despite sometimes successful short-term results that subsequently deteriorate.
Overlay board solutions provide the most reliable approach for tiling over chipboard floors. Cement-based backer boards like James Hardie HardieBacker, Tile Backer, or similar products create stable, moisture-resistant substrates specifically engineered for tiling. These sheets, typically 6-12mm thick depending on specific product and application, mechanically fix through the chipboard into supporting joists below, creating independent substrates with minimal movement sensitivity. Alternative overlay approaches include minimum 15mm exterior-grade plywood, water-resistant construction panels like Wedi board, or specialist tile backer systems from manufacturers like BAL or Weber. These overlay systems isolate tiles from the chipboard's movement characteristics while providing surfaces specifically designed for optimal adhesive bonding, dramatically improving long-term performance reliability compared to direct application methods.
Decoupling membrane systems offer alternative solutions with minimal height build-up. Products like Schlüter-DITRA, BAL Rapid-Mat, or similar polyethylene membranes with fleece backing create physical separation between chipboard substrate and tiling, absorbing movement stresses that would otherwise transfer directly to tiles. These thin (approximately 3-5mm) membranes significantly reduce height impact compared to backer boards while still providing essential decoupling functions. The membranes bond to chipboard using flexible polymer adhesives, with tiles subsequently applied to the membrane surface using appropriate cement-based adhesives. This approach proves particularly valuable in renovation projects where height limitations prevent thicker overlay solutions, though requiring strict adherence to manufacturer-specific installation protocols for reliable performance.
Substrate assessment before any tiling work provides essential information guiding appropriate preparation requirements. Evaluate the specific chipboard type – standard P5 flooring grade presents the greatest challenges, while higher-performance P7 structural grade offers somewhat improved stability. Check board thickness and supporting structure, as 18mm chipboard on joists at 450mm centres provides insufficient rigidity for direct tiling regardless of surface preparation. Assess overall floor deflection under load, as excessive movement indicates structural inadequacy requiring remediation before any tiling work. Examine moisture content using appropriate meters, as elevated levels suggest potential ongoing issues requiring resolution. Identify any existing damage, particularly around board joints or plumbing penetrations, requiring repair before subsequent work. This comprehensive assessment prevents proceeding with inadequate preparation likely to result in expensive remedial work later.
Joist centres and structural support significantly influence tiling outcomes regardless of surface preparation method. Industry standards generally recommend maximum deflection under load not exceeding L/360 (where L represents joist span in millimetres) for successful ceramic tile installation. Standard domestic floor constructions with 18mm chipboard on joists at 450mm centres typically exceed this deflection limit, particularly with point loading. Reducing joist centres to 300mm or strengthening existing structures with additional noggings or cross-bracing helps achieve appropriate rigidity. Alternatively, increasing chipboard thickness to 22mm with appropriate fixing patterns improves overall floor stiffness. These structural considerations often prove more critical than surface preparation techniques in determining ultimate tiling success, as even perfect surface treatment cannot overcome inadequate structural support.
Specialised preparation systems from adhesive manufacturers offer potential direct application options when overlay boards or decoupling membranes prove impractical. These multi-component systems typically involve initial primer application using penetrating formulations that stabilise the chipboard surface, followed by advanced flexible adhesives specifically formulated for challenging substrates. Companies like BAL, Weber, and Mapei offer such systems, though generally with specific limitations regarding maximum tile size (typically 300×300mm or smaller) and application areas (usually excluding wet environments like showers). These direct systems generally represent compromise approaches when height constraints prevent preferred overlay methods, rather than optimal solutions for standard installations.
